Products Name：
HNPWS Series SF6 Micro-Water Density Online Monitoring System

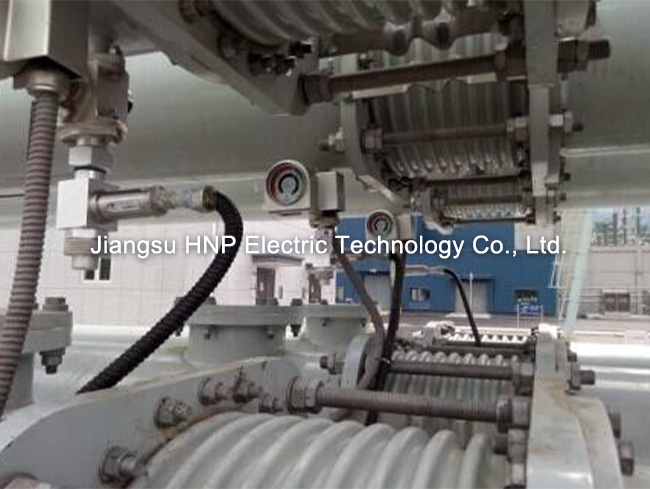

System Overview
The
SF6 gas micro-water density online monitoring device is mainly used
to monitor micro-water density and temperature and their change trends of SF6gas in the gas filling equipment. When any index relevant to SF6 gas
changes, the change curve is given; when any relevant index reaches the alarm
status, the system alarms or automatically starts the alarm device; when any
relevant index exceeds the standard to be in danger, the system alarms or
automatically starts the locking device to ensure the safe operation of the
equipment.
It
is widely used in the field of smart grid substation and urban utility tunnel
GIL bus monitoring.
Technical Parameters
Humidity
index | Measurement
range | -80~+20°C
(or 10~20000ppmv) |
Measurement
precision | ±0.5°C | |
Alarm
threshold | 300~600uL/L
(can be set according to customer requirements) | |
Density
index | Measurement
range | 0~1.00
MPa |
Precision
class | 0.1,
0.2, 0.5 and 1.0 (customer requirements) | |
Resolution | 0.0001
MPa | |
Alarm
and locking threshold | According
to the density relay setting | |
Temperature
index | Measurement
range | -35~ +75°C |
Measurement
precision | ±1°C | |
Alarm
threshold | To be
set according to customer requirements | |
Overall
index | Display
mode | LCD
screen and remote host (IPC), etc. |
Communication
interface | RS485/CAN/IEC61850 | |
Relay
contact capacity | AC 250V 5A, DC 30V 5A | |
Supply
voltage | DC 24V
or AC 220V | |
Baud
rate | 2400bps | |
Overall
dimensions | To be
customized according to site conditions | |
Working
environment | Working
temperature | -35 °C~+60 °C |
Working
humidity | <80%RH | |
Working
pressure | <1Mpa |
