HNPRX-1000 Capacitive Equipment Online Monitoring System
Overview
HNPRX-1000 capacitive equipment online monitoring system can online monitor and diagnose the real-time status parameters of equipment such as transformer bushing, capacitive voltage transformer and coupling capacitor in the substation; monitoring includes monitoring of dielectric loss, leakage current and equivalent capacitance, etc. of the capacitive equipment, and diagnosis includes fault judgment, fault diagnosis, fault seriousness and development trend analysis, fault hazard evaluation and repair strategy etc.

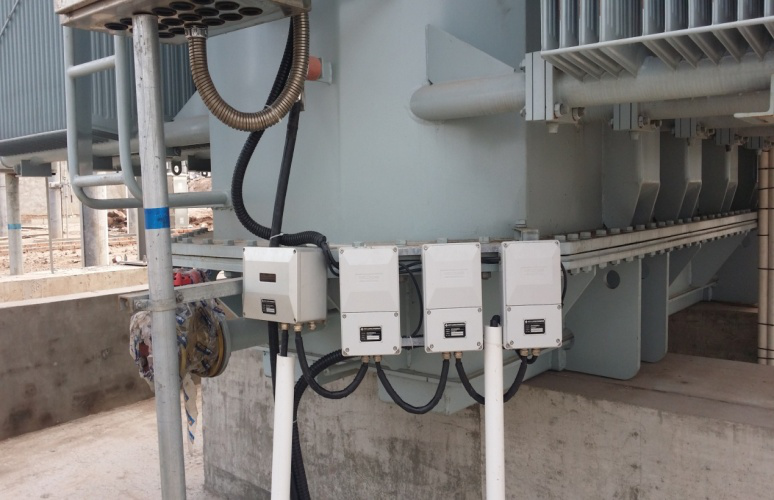

It mainly consists of sensor module, IED module, control host and monitoring & diagnosis system, etc. The locally installed equipment has an enclosure protection level above IP45, and adopts RS485 bus architecture to facilitate installation and wiring. The standard control host is Advantech 510 series, the serial ports can be expanded, or a higher quality of industrial control host can be selected, and there is a 19" standard cabinet for mounting. The monitoring & diagnosis system is developed independently by HNP and is compatible with XP or later versions of the operating system. Through years of version updating, the system has complete functions and humanized operation.
Main Features
Through-core active zero flux sensor
Digitalized and bottleneck-free synchronization with corresponding systems
Humanized design concept
Domestic latest monitoring solution
High standard EMC performance
Compatible with IEC61850 communication protocol
Decentralized and local digital measurement principle
Technical Parameters
Equipment name | Monitoring parameter | Measurement range | Measurement error |
Voltage monitoring unit | Bus voltage | 35-1000kV | ±0.5% |
System current | 0-1kA | ±1% | |
System frequency | 45-55Hz | ±0.01 Hz | |
Harmonic voltage | 3/5/7/9 times | ±2% | |
Capacitive equipment monitoring unit | Equivalent capacitance | 50pF-10000pF | ±1% |
End shield current | 1 mA -1000mA | ±1% | |
Dielectric loss | 0.0001-0.3 | ±0.001 |
