Products Name：

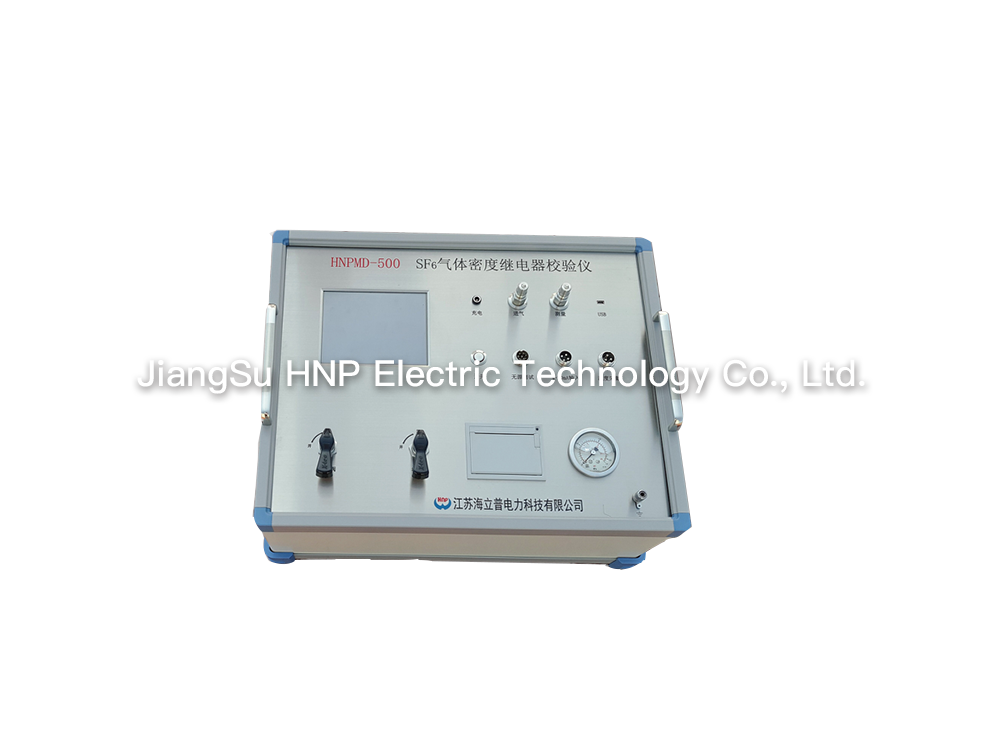

HNPMD-500 Fully-Automatic Density Relay Calibrator
Overview
The HNPMD-500 fully-automatic density relay calibrator is an improved version of the HNPMD-400. The precision of the sensor is further increased, and the integration of the mainboard A/D circuit is better, ensuring that the measurement precision can reach Grade 0.1 after calibration. Therefore, it can be used as a reference instrument.
The optimization of the measurement mode realizes “zero manual intervention” during the entire process, completely avoiding errors caused by manual observations in the previous calibration processes.
The 5.6-inch 800×480TFT industrial touch screen and the stainless steel panel complement each other. The instrument is highly operative and extremely easy to use. The calibration process is supervised by the single-chip microcomputer. The staff only needs to connect the pipeline, gas circuit and electric circuit correctly. The calibration results can be printed by its thermal printer in an easy-to-understand comparison format, so that the results are clear at a glance.
Main Features
High degree of mechanical & electrical integration, advanced technology and reliable performance
Able to simultaneously test two groups of alarm signals, two groups of blocking signals and one group of overpressure signals
Dynamic compensation of pressure and temperature, and automatic conversion to the measured value at 20°C
With multiple types of transition joints, adapt to the density relays of various GIS switches
Built-in high-precision pressure controller and pressure transmitter to accurately detect the pressure
With built-in steel cylinder, easy to use and reliable
Less gas consumption during calibration: when the steel cylinder supplied is filled with the gas to reach the pressure 1MPa, about 90 tests can be carried out
The calibrator can also calibrate the precision of the pressure meter or density meter
Lithium battery-powered to achieve continuous operation for 8 hours or more
Technical Parameters
Precision grade | Grade 0.1 |
Pressure measurement range | 0~1.0Mpa |
Temperature measurement range | -40~+100°C |
Pressure resolution | 0.0001Mpa |
Temperature resolution | 0.1°C (typical precision: -20~+40°C) |
Working power supply | Built-in lithium battery AC/DC |
Storage capacity | ≮800 valid data |
Printer | Thermal printer |
Dimensions | Main machine: 450mm×355m×230mm |
Overall machine: 650mm×450m×300mm | |
Weight | About 15kg |
