Products Name：

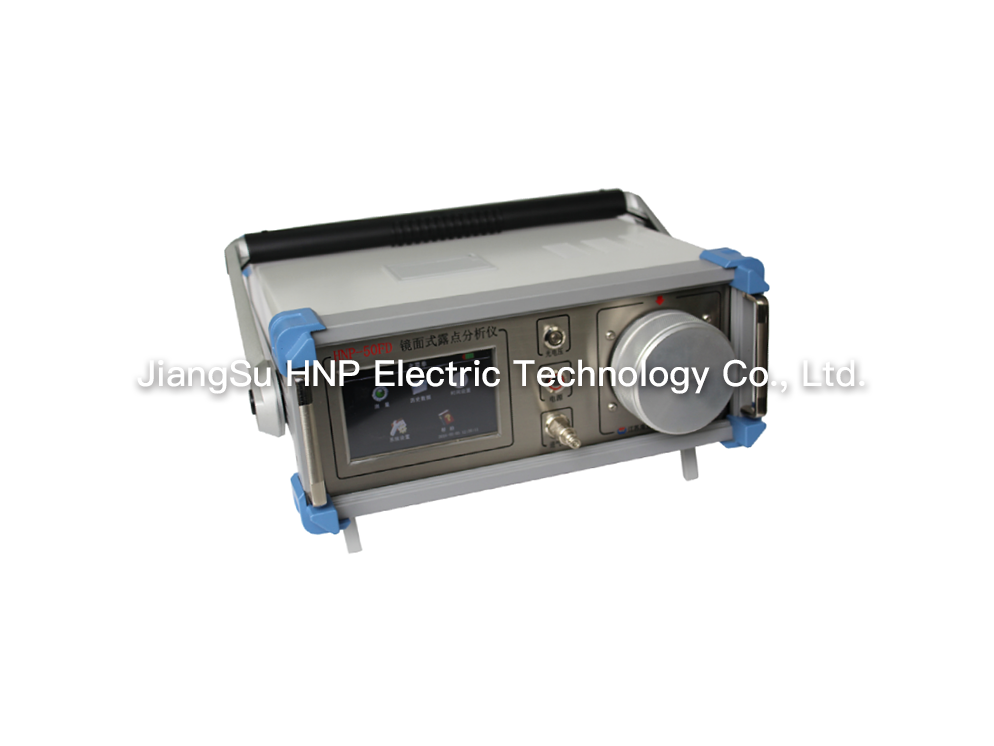

HNP-50FD Mirror Type Dew Point Analyzer
Overview
The HNP-50FD mirror-type dew point analyzer is an instrument designed to detect the gas humidity. With semiconductor cooling elements, it achieves a “cold mirror” surface to produce a low-temperature zone, which cools the sample gas passing over the mirror surface and forms a saturated vapor pressure so as to form condensation or frost on the surface of the cold mirror.
Under the premise of ensuring that the basic functions and test accuracy are not reduced, the operating procedures are simplified to improve the maneuverability of the instrument as much as possible, for example, elimination of rarely-used keys such as forced heating and forced cooling, use of quick plug instead of straight-through chuck, and simplification of gas circuit connection procedures to facilitate learning and mastering.
Main Features
Use of intuitive measurement method completely conforming to the definition of dew point temperature
Exquisite mirror processing technology to ensure the accuracy of the “condensation” process
Advanced photoelectric conversion technology to monitor the measurement process in real time
?Precise temperature sensing unit to ensure the accuracy of measured values
More suitable for field application with built-in high capacity lithium battery
Superior color touch screen as human-machine interface to make the operation easier
Technical Parameters
Measurement range (ambient temperature 20°C)
-60~0°C
Maximum refrigeration temperature difference (ambient temperature 20°C)
Δ107°C
Precision
±0.2°C
Resolution
0.1°C
Balance time
<5min
Pressure withstanding level
<1Mpa
Display
800×480TFT touch screen
Flow rate of sample gas
About 600mL/min
Working power supply
Built-in lithium battery, AC/DC
Working environment
Ambient temperature: -20~+35°C
Ambient humidity:<70%RH
Storage capacity
≮500 normal data
Weight
About 5kg
Dimensions
About 400mm×320mm×180mm
Charging time
4 hours or more (with overcharge protection)
Usage time
≮8 hours
